Invalidations(무효화) 발생하는 경우

#) shared pool 을 비워주는 명령*2번

alter system flush shared_pool;



SELECT sql_id, sql_text, parse_calls, loads, executions
FROM v$sql
WHERE sql_text LIKE '%hr.employees%'
AND sql_text NOT LIKE '%v$sql%';

#) 샘플 테이블 생성

create table hr.emp as select * from hr.employees;



alter system flush shared_pool;

#) 확인

select last_name, salary from hr.emp where employee_id = 100;

#) 조회했는지 확인

SELECT sql_id, sql_text, parse_calls, loads, executions
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

#) invalidations = 무효화 유무 확인

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

#) 실행계획 정보 확인
=> 통계정보(모집단)가 있어야 실행계획을 생성이 가능하다.

select * from table(dbms_xplan.display_cursor('8qhp0dmv9q94d'));

=> dynamic sampling used for this statement (level=2) => 동적인 표본추출(dynamic sampling)

#) 표본추출

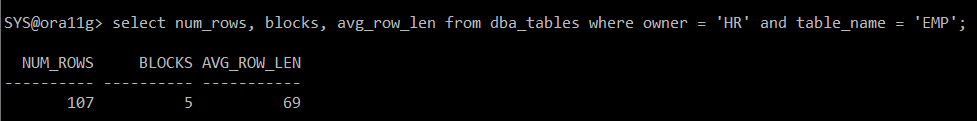

select num_rows, blocks, avg_row_len from dba_tables where owner = 'HR' and table_name = 'EMP';

NUM_ROWS   BLOCKS    AVG_ROW_LEN
(row의 수)       (block 수)  (한 행의 byte 값)

#) 통계수집을 하고 싶다면?

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

# 통계 수집

execute dbms_stats.gather_table_stats('hr','emp', no_invalidate=>false)

#) 통계수집 확인

select num_rows, blocks, avg_row_len from dba_tables where owner = 'HR' and table_name = 'EMP';

#) 실행계획의 무효화 확인

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

버그 발생!

#) hr 계정에서 select

select last_name, salary from hr.emp where employee_id = 100;

LAST_NAME                     SALARY
------------------------- ----------
King                           24000

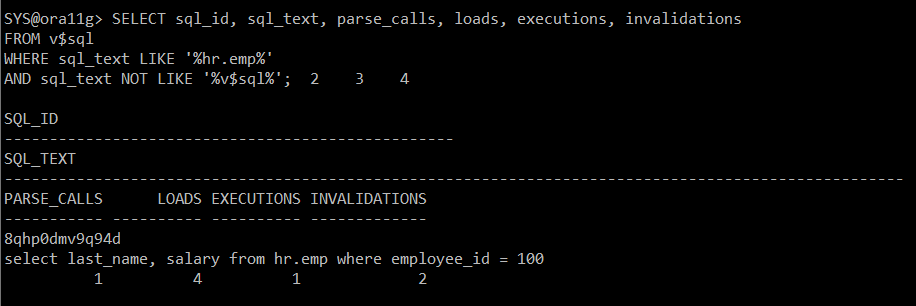

#) 실행계획을 loads 증가되었는지 확인

 SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

#) 실행계획 확인
=> 통계수집했기 때문에

select * from table(dbms_xplan.display_cursor('8qhp0dmv9q94d'));

#) index 생성
=> uniqe index 생성

create unique index hr.emp_idx on hr.emp(employee_id);

#) primary key 추가로 생성하기

alter table hr.emp add constraint emp_id_pk primary key(employee_id);



=> 원래 문법(제약 조건을 삭제 했다가 다시 추가 생성해본다!)

alter table hr.emp add constraint emp_id_pk primary key(employee_id) using index hr.emp_idx;

#) 제약조건 확인

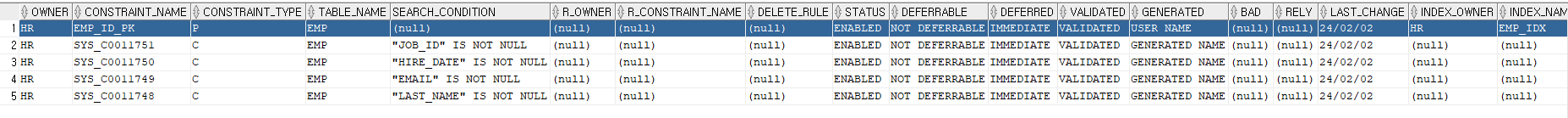

select * from dba_constraints where table_name ='EMP' and owner = 'HR';

#) 제약조건 변경 후 무효화 확인

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';



#) HR 계정에서 select문

select last_name, salary from hr.emp where employee_id = 100;

#) 실행계획 확인
=> loads 수 변화

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

#) 컬럼들의 정보 확인

desc hr.emp

#) type 변경
LAST_NAME VARCHAR2(25) -> 30자리로

alter table hr.emp modify last_name varchar2(30);



#) 다시 확인해보기

desc hr.emp

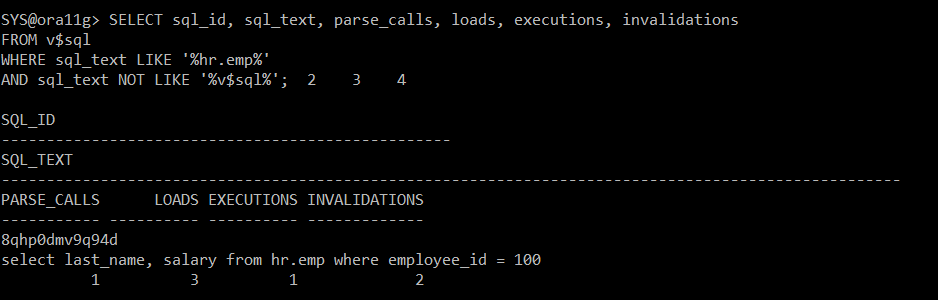

#) 무효화의 발생했는지 확인

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

#) HR 게정 에서의 select 문

select last_name, salary from hr.emp where employee_id = 100;

#) loads 수 변경

SELECT sql_id, sql_text, parse_calls, loads, executions, invalidations
FROM v$sql
WHERE sql_text LIKE '%hr.emp%'
AND sql_text NOT LIKE '%v$sql%';

◎ invalidations(무효화) 발생하는 경우

1) 통계수집

2) 테이블 구조 변경(컬럼 타입 변경 등)

3) 제약조건 추가(index 생성, primary key 추가)
